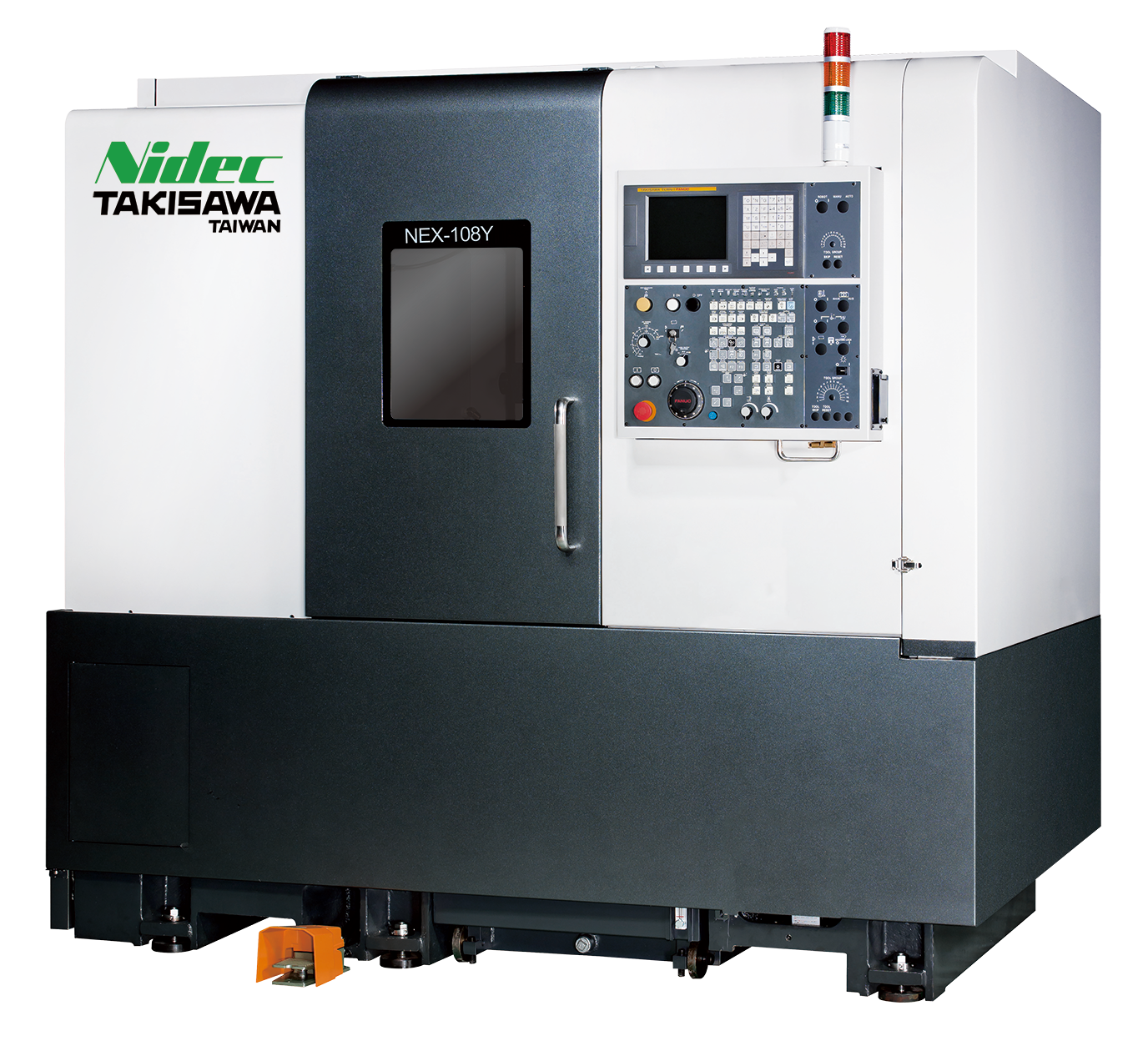

NEX-108Y
  •  Specification
Machine Specifications(Metric Unit)
Item Unit NEX-108Y
Capacity Max. Swing mm 480
Max. Turning Diameter mm 260
Max. Turning Length mm 444.5
Spindle Max. Bar Work Capacity mm 52(65)
Spindle Speed rpm 4000
Chuck Size inch 8"
Turret Turret Type   T12
Live Tool Turret(Y/N)   Y
Axes Y Axis(Y/N)   Y
Machine
Dimension		 高度 mm 2095
寬度 mm 2382
深度 mm 1669
機械重量 kg 4500
Machine Specifications(Imperial Unit)
Item Unit NEX-108Y
Capacity Max. Swing inch 18.86
Max. Turning Diameter inch 10.22
Max. Turning Length inch 17.47
Spindle Max. Bar Work Capacity inch 2.04(2.56)
Spindle Speed rpm 4000
Chuck Size inch 8"
Turret Turret Type   T12
Live Tool Turret(Y/N)   Y
Axes Y Axis(Y/N)   Y
Machine
Dimension		 Height mm 82.48
Width mm 93.78
Depth mm 65.71
Weight kg 9920
