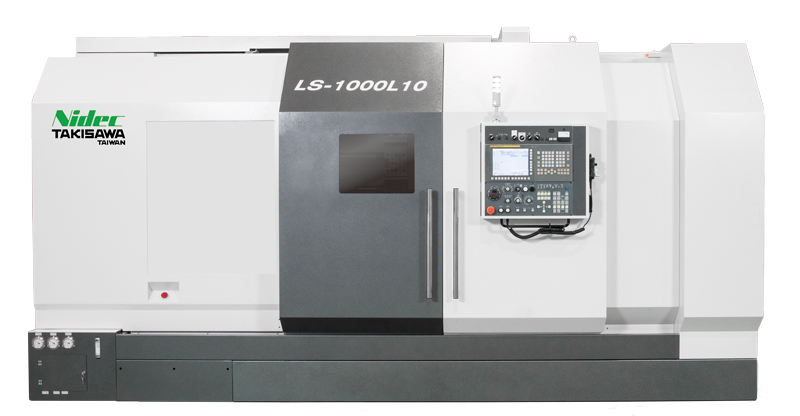

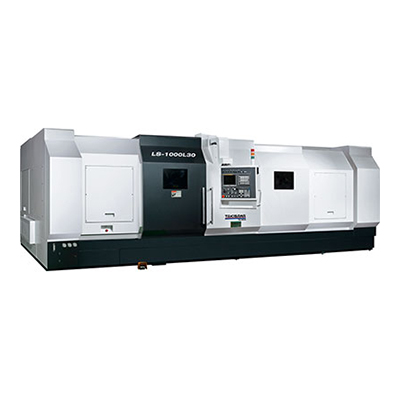

LS-1000
LS SERIES is a large swing horizontal turning center with strong structure for super heavy cutting applications, big spindle bore supports big diameter parts machining, with various lengths.
- Specification
Spindle
Taiwan Takisawa home-made spindle equipped with high quality bearings sourced from Europe and Japan.
The spindle is assembled by finely bored cast iron housing in air-conditioned clean room. The Design and precision assembly ensure high accuracy and optimum capability coupled with easy maintenance and low cost for service.
All models equipped with gearbox, the gears are all with 0-grade fine ground precision. The gearbox allows cutting at high torque in low speed range, combined with a highly accurate finish surface.
The spindle is assembled by finely bored cast iron housing in air-conditioned clean room. The Design and precision assembly ensure high accuracy and optimum capability coupled with easy maintenance and low cost for service.
All models equipped with gearbox, the gears are all with 0-grade fine ground precision. The gearbox allows cutting at high torque in low speed range, combined with a highly accurate finish surface.
Turret
The high performance turrets are also home-made by Taiwan Takisawa, the two-piece high precision coupling provides not only high clamping force, but also rapid and accurate indexing. It’s easy to calibrate positioning in both the CW and CCW direction.
We can provide a customized needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
We can provide a customized needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
Tailstock
Taiwan Takisawa home-made tailstock with high thrust and strong clamping force ensures maximum stability especially when working with long workpieces. The movement of tailstock body is carried by turret with easy positioning feature, the tailstock quill is available in fixed and rotary versions and the tailstock is pushed by hydraulic.
Special needs such as thrust size or quill form etc. can be assessed if customization is required.
Special needs such as thrust size or quill form etc. can be assessed if customization is required.
Steady Rest
| Item | Unit | LS-1000L10 | LS-1000L15 | LS-1000L20 | LS-1000L30 | |
|---|---|---|---|---|---|---|
| Capacity | Max. Swing | mm | 1030 | 1030 | 1030 | 1030 |
| Max. Turning Diameter | mm | 900 | 900 | 900 | 900 | |
| Max. Turning Length | mm | 1031.7 | 1531.7 | 2031.7 | 3031.7 | |
| Spindle | Max. Bar Work Capacity | mm | 180 | 180 | 180 | 180 |
| Spindle Speed | rpm | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) | |
| Chuck Size | inch | 20"(24") | 20"(24") | 20"(24") | 20"(24") | |
| Spindles | 1 | 1 | 1 | 1 | ||
| Turret | Turret Type | T10 (T12) (T8) | T10 (T12) (T8) | T10 (T12) (T8) | T10 (T12) (T8) | |
| Machine Dimension |
Height | mm | 2573 | 2573 | 2691 | 2812 |
| Width | mm | 4733 | 5202 | 5810 | 7060 | |
| Depth | mm | 2472 | 2472 | 2472 | 2809 | |
| Weight | kg | 12000 | 13500 | 16500 | 18000 | |
| Item | Unit | LS-1000L10 | LS-1000L15 | LS-1000L20 | LS-1000L30 | |
|---|---|---|---|---|---|---|
| Capacity | Max. Swing | inch | 40.6 | 40.6 | 40.6 | 40.6 |
| Max. Turning Diameter | inch | 35.4 | 35.4 | 35.4 | 35.4 | |
| Max. Turning Length | inch | 40.6 | 60.3 | 80 | 119.4 | |
| Spindle | Max. Bar Work Capacity | inch | 7.1 | 7.1 | 7.1 | 7.1 |
| Spindle Speed | rpm | 2000(1500) | 2000(1500) | 2000(1500) | 2000(1500) | |
| Chuck Size | inch | 15"(18") | 15"(18") | 15"(18") | 15"(18") | |
| Spindles | 1 | 1 | 1 | 1 | ||
| Turret | Turret Type | T10(T12) | T10(T12) | T10(T12) | T10(T12) | |
| Machine Dimension |
Height | inch | 101.3 | 101.3 | 105.9 | 110.7 |
| Width | inch | 186.3 | 204.8 | 228.7 | 278 | |
| Depth | inch | 97.3 | 97.3 | 97.3 | 110.6 | |
| Weight | lb | 26455.5 | 29762.4 | 36376.3 | 39683.2 | |
