- Specification
| Metric Units | |||||
|---|---|---|---|---|---|
| LS-800CL10 | LS-800CL15 | LS-800CL20 | LS-800CL30 | ||
| Max swing (mm) | 830 | 830 | 830 | 830 | |
| Max turning diameter (mm) | 760 | 760 | 760 | 760 | |
| Max tuning length (mm) | 1050 | 1550 | 1950 | 2950 | |
| Bar capacity (mm) | 180 | 180 | 180 | 180 | |

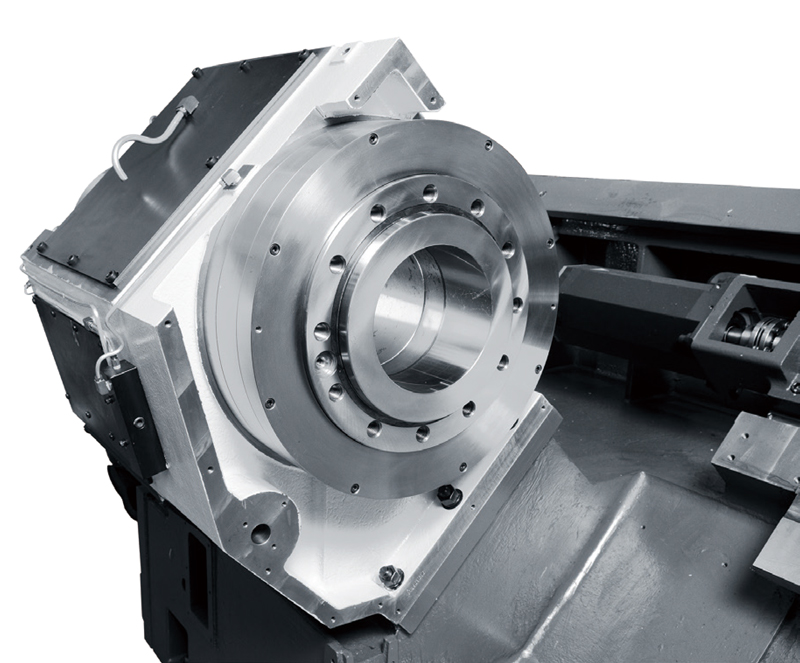

| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 | |
| Chuck size (inch) | 20" | 20" | 20" | 20" | |
| Number of head stock | 1 | 1 | 1 | 1 | |

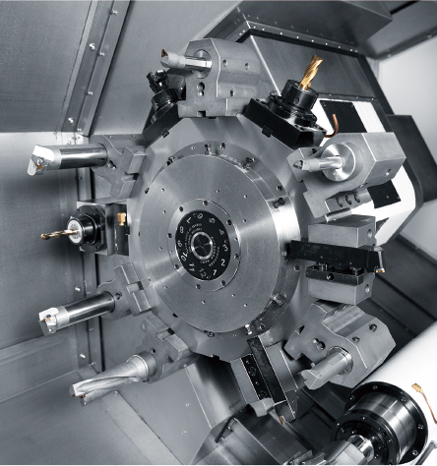

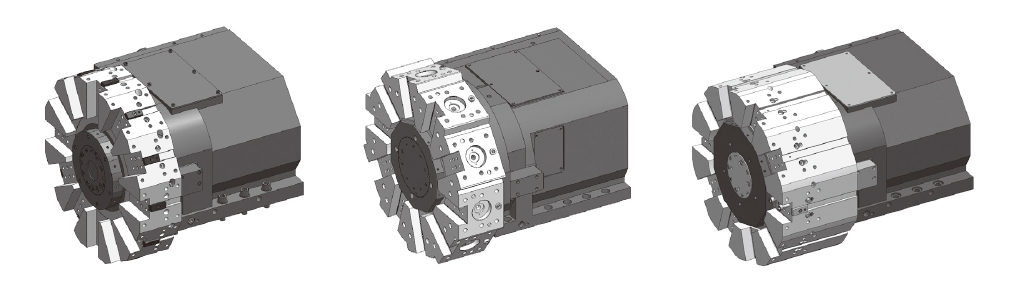

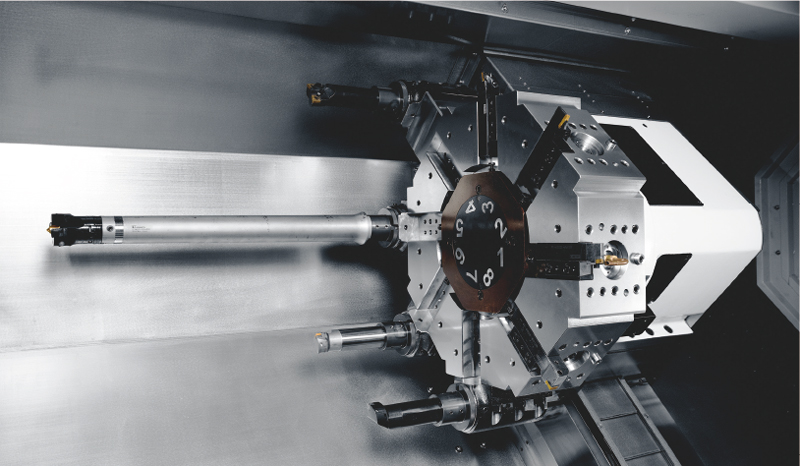

| Number of tools | T10(T12) | T10(T12) | T10(T12) | T10(T12) | |
| Milling turret (Y/N) | |||||
| Y axis (Y/N) | |||||
| US Standard | |||||
|---|---|---|---|---|---|
| LS-800CL10 | LS-800CL15 | LS-800CL20 | LS-800CL30 | ||
| Max swing (mm) | 32.6 | 32.6 | 32.6 | 32.6 | |
| Max turning diameter (mm) | 29.9 | 29.9 | 29.9 | 29.9 | |
| Max tuning length (mm) | 41.3 | 60.9 | 76.6 | 115.9 | |
| Bar capacity (mm) | 7.1 | 7.1 | 7.1 | 7.1 | |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 | |
| Chuck size (inch) | 20" | 20" | 20" | 20" | |
| Number of head stock | 1 | 1 | 1 | 1 | |
| Number of tools | T10(T12) | T10(T12) | T10(T12) | T10(T1 | |
| Milling turret (Y/N) | |||||
| Y axis (Y/N) | |||||
