LX-2500M

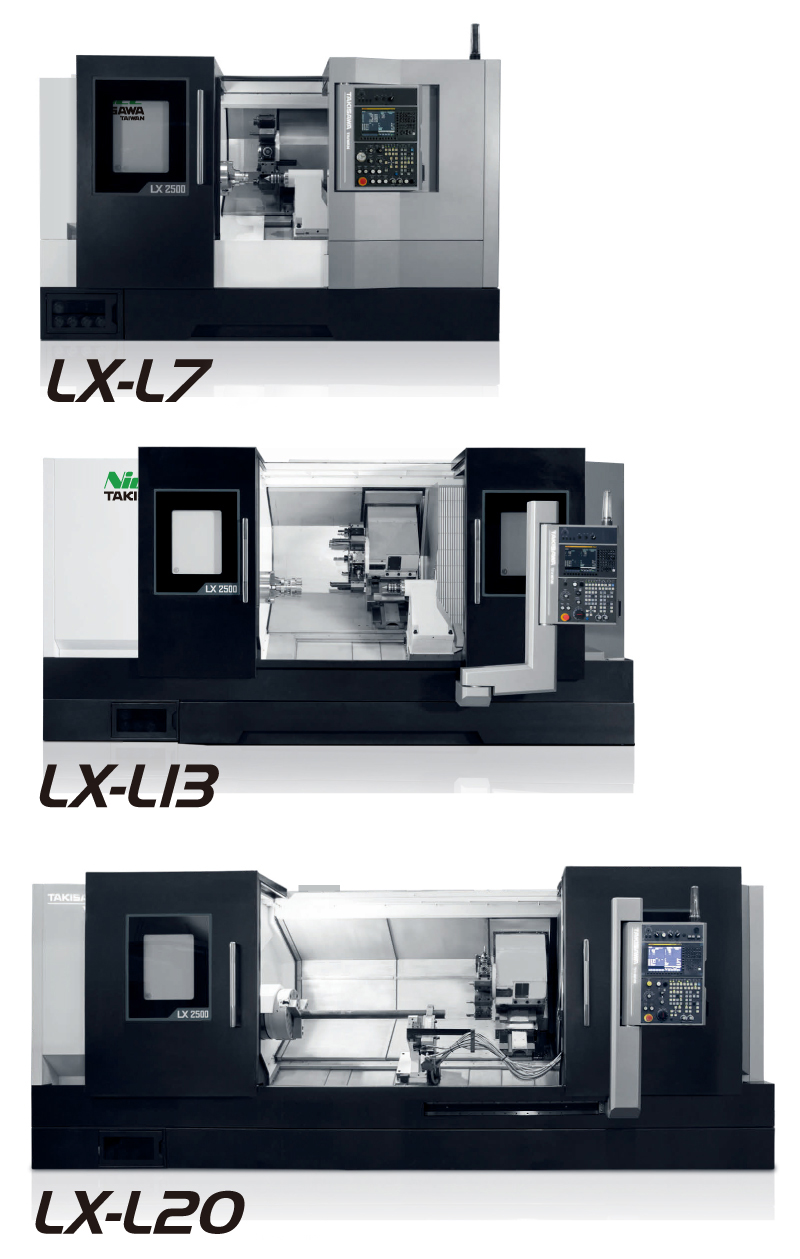

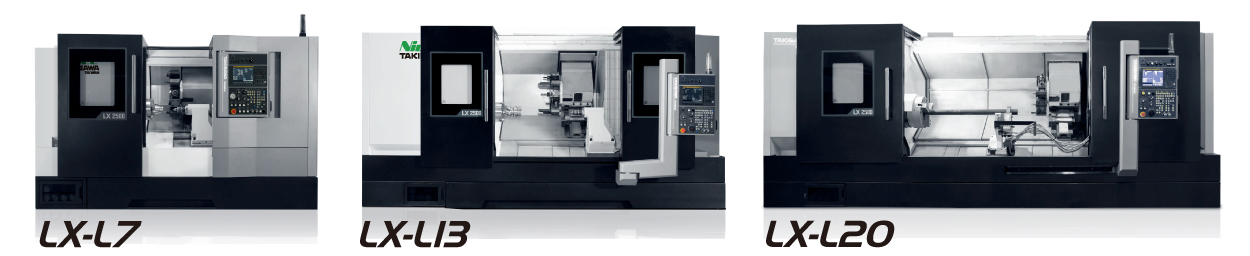

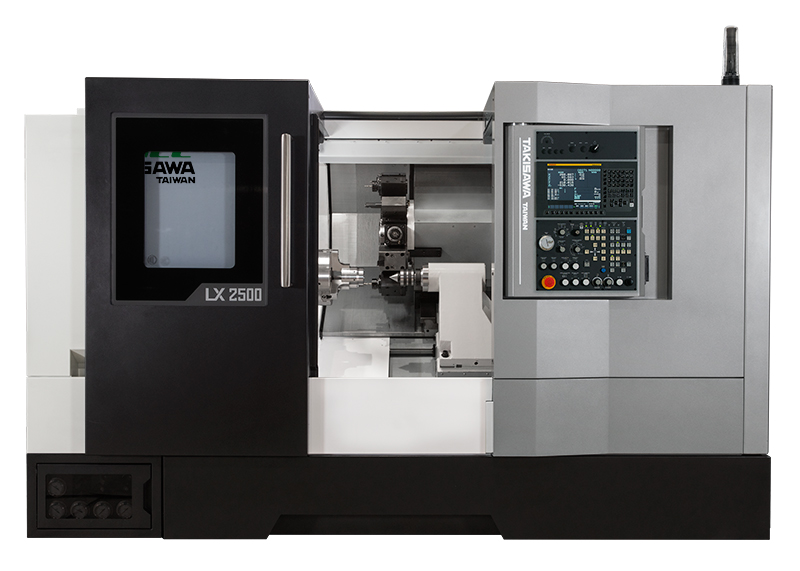

The LX-2500 series is a new generation high precision turning center developed for highly precise machining through its extremely strong and rigid structure and a design to counter the impact of thermal shock.
The range is available in a variety of spindle, turret and tailstock configurations with high precision peripheral options.
  •  Specification

❚ Product features

Spindel

"> The spindle is made in house to ensure highest quality and reliability. There are three types: Built-in spindle motor; Gear Box headstock and P motor headstock.
These alternatives allow choices for precision, torque or cost effectiveness.

Turret

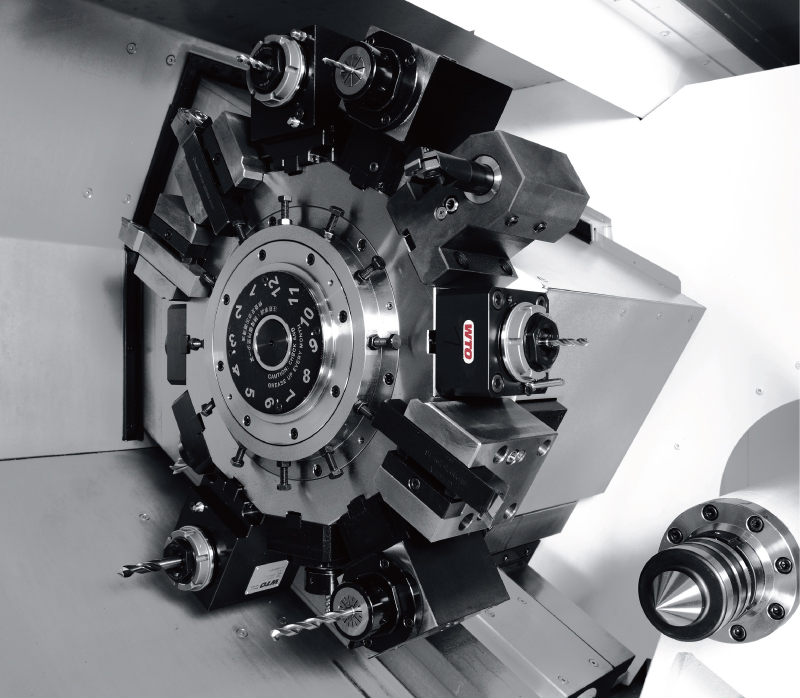

The T12 Milling Turret is a tested in house design that enables combined machining such as milling, drilling and tapping in addition to conventional turning. This allows complex and highly accurate machining in a single cycle for mass production of parts.
We can provide a customised needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.

Tailstock

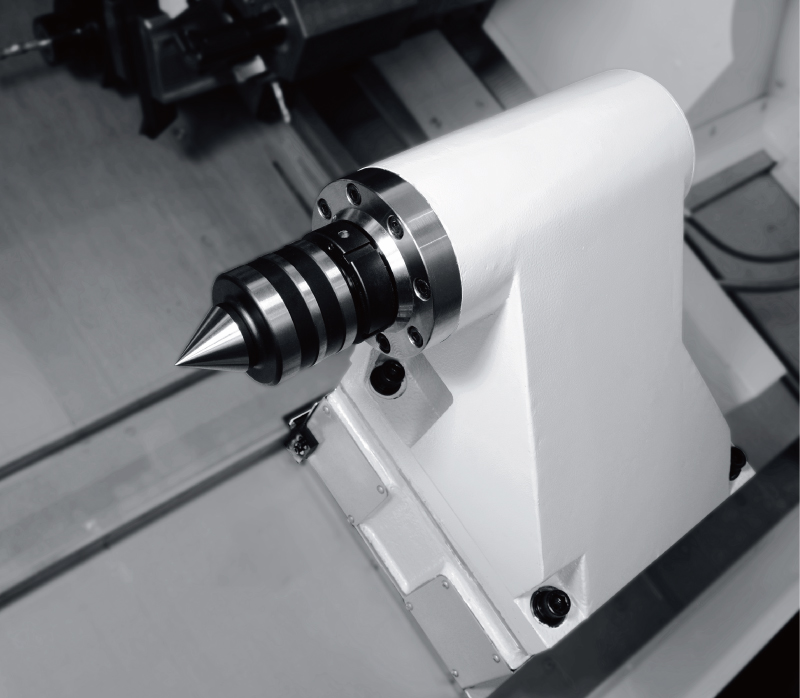

The tailstock is a highly rigid design driven by a servo motor. Automation of the tailstock postion and drilling synchronously during turning with a drill bit installed allows greatly reduced cycle times. The mandrel is available in fixed and rotary versions and the tailstock is pushed by oil pressure.
Special needs such as thrust size or mandrel form etc. can be assessed if customization is required.
Machine Specifications(Metric Unit)
Item Unit LX-2500M L7 LX-2500M L13 LX-2500M L20
Capacity Max. Swing mm 625 625 625
Max. Turning Diameter mm 420 420 420
Max. Turning Length mm 698 1333 2083
Spindle Max. Bar Work Capacity mm 81[75(G)] 81[75(G)] 81[75(G)]
Spindle Speed rpm 3500(B)(G)(P)[3000](P) 3500(B)(G)(P)[3000](P) 3500(B)(G)(P)[3000](P)
Chuck Size inch 10" 10" 10"
Turret Turret Type   T12 T12 T12
Live Tool Turret(Y/N)   Y Y Y
Axes Y Axis(Y/N)   N N N
Machine
Dimension		 Height mm 1830 1882 1881
Width mm 3000 4280 5296
Depth mm 1967 2182 2267
Weight kg 6250 7650 8650
Machine Specifications(Imperial Unit)
Item Unit LX-2500M L7 LX-2500M L13 LX-2500M L20
Capacity Max. Swing inch 24.61 24.61 24.61
Max. Turning Diameter inch 16.54 16.54 16.54
Max. Turning Length inch 27.48 52.48 82.01
Spindle Max. Bar Work Capacity inch 3.19[2.95(G)] 3.19[2.95(G)] 3.19[2.95(G)]
Spindle Speed rpm 3500(B)(G)(P)[3000](P) 3500(B)(G)(P)[3000](P) 3500(B)(G)(P)[3000](P)
Chuck Size inch 10" 10" 10"
Turret Turret Type   T12 T12 T12
Live Tool Turret(Y/N)   Y Y Y
Axes Y Axis(Y/N)   N N N
Machine
Dimension		 Height inch 72.05 74.09 74.06
Width inch 118.11 168.5 208.5
Depth inch 77.44 85.91 89.25
Weight lb 13750 16865 19070
