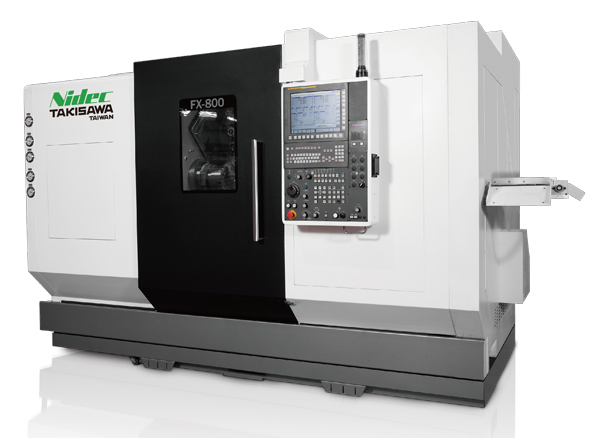

FX-800
Twin turrets turning center for process integration and high productivity.

FX-800 is a multi-purpose, high-productivity, twin spindles, twin turrets turning center. The upper and lower turrets are T16 powered turret, and the upper turret is equipped with Y axis, which can perform complex turning and milling and greatly improve production efficiency.
  •  Specification

Simultaneous machining with upper and lower turrets

Upper and Bottom Turret
Both turret can mill or drill on one spindle at the same time, which means users can flexibly use the tool configuration of the upper and lower turrets, to reduce non-processing time and improve production efficiency.
Simultaneous turning with upper and lower turrets

Spindle

Spindle
The left and right spindles are equipped with built-in motors for high precision, low vibration and low noise, which provide better surface roughness of the workpiece.

Turret

Turret
Euipped with 16 stations power turrets, which can handdle combined machining such as milling, drilling and tapping. Inside the turret, the large diameter of coupling gear set with curvic tooth profile provides high rigidity and high accurcy.
Machine Specifications(Metric Unit)
Item Unit FX-800
Capacity Max. Swing mm 310
Max. Turning Diameter mm 310
Max. Turning Length mm 657
Max. Bar Work Capacity mm 65 / 52

Sipndle/

Sub. Spindle

 Spindle Speed rpm 4500 / 5000
Chuck Size inch 8"/8"
Spindles   2
Turret Turret Type   T16+T16
Live Tool Turret(Y/N)   Y
Axis Y Axis(Y/N)   Y
Machine
Dimension		 Height mm 2340
Width mm 3550
Depth mm 2334
Weight kg 11000
Machine Specifications(Imperial Unit)
Item Unit FX-800
Capacity Max. Swing inch 12.2
Max. Turning Diameter inch 12.2
Max. Turning Length inch 25.87
Max. Bar Work Capacity inch 2.56 / 2.05

Sipndle/

Sub. Spindle

 Spindle Speed rpm 4500 / 5000
Chuck Size inch 8"/8"
Spindles   2
Turret Turret Type   T16+T16
Live Tool Turret(Y/N)   Y
Axis Y Axis(Y/N)   Y
Machine
Dimension		 Height inch 92.12
Width inch 139.76
Depth inch 91.89
Weight lb 24250
