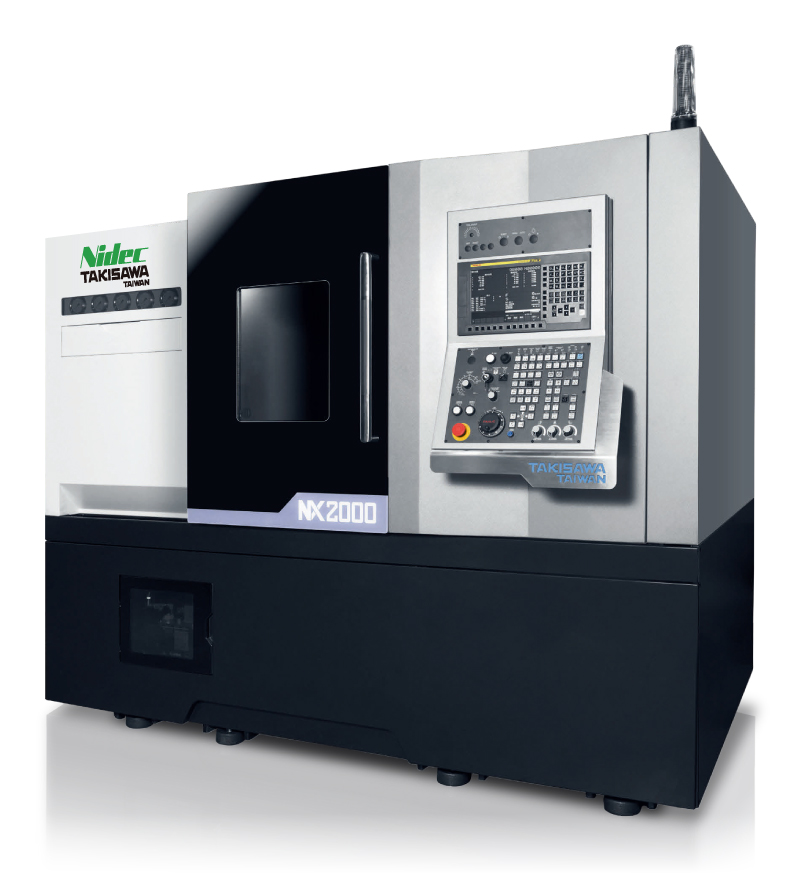

NX-2000M
New NX-2000 series turning & milling center with various modules can be configured with sub-spindle, servo tailstock and Y-axis.
The bed casting with horizontal box structure provides minimal thermal displacement. The X/Y/Z axis adopts full box guide way design provides high rigidity and high speed vibration attenuation features.
The bed casting with horizontal box structure provides minimal thermal displacement. The X/Y/Z axis adopts full box guide way design provides high rigidity and high speed vibration attenuation features.
- Specification
❚ Product features
Spindel
The left and right spindles are equipped with built-in motors, provide high precision, low vibration and low noise, capable to achieve better surface roughness of the workpiece.
Turret
The T12 Milling Turret is a tested in house design that enables combined machining such as milling, drilling and tapping in addition to conventional turning. This allows complex and highly accurate machining in a single cycle for mass production of parts.
We can provide a customized needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
We can provide a customized needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
Tailstock
The MT and YT are equipped with a servo tailstock. The tailstock is driven by a servo motor, which has the advantages of easy operation and fast movement.
The movement speed is up to 30 meters per minute. Under heavy load conditions, the rotary spindle tailstock with a fixed center can be selected.
The movement speed is up to 30 meters per minute. Under heavy load conditions, the rotary spindle tailstock with a fixed center can be selected.
| Item | Unit | NX-2000 MT | NX-2000 MS | |
|---|---|---|---|---|
| Capacity | Max. Swing | mm | 600 | 600 |
| Max. Turning Diameter | mm | 310 | 310 | |
| Max. Turning Length | mm | 349 | 349 | |
| Spindle | Max. Bar Work Capacity | mm | 66 | 66 |
| Spindle Speed | rpm | 4500 | 4500 | |
| Chuck Size | inch | 8" | 8" | |
| Sub. Spindle | Max. Bar Work Capacity | mm | - | 66 |
| Spindle Speed | rpm | - | 6000 | |
| Chuck Size | inch | - | 6" | |
| Turret | Turret Type | T12 | T12 | |
| Live Tool Turret(Y/N) | Y | Y | ||
| Axes | Y Axis(Y/N) | N | N | |
| Machine Dimension |
Height | mm | 1953 | 1953 |
| Width | mm | 2443 | 2443 | |
| Depth | mm | 1690 | 1690 | |
| Weight | kg | 5840 | 5850 | |
| Item | Unit | NX-2000 MT | NX-2000 MS | |
|---|---|---|---|---|
| Capacity | Max. Swing | inch | 23.62 | 23.62 |
| Max. Turning Diameter | inch | 12.2 | 12.2 | |
| Max. Turning Length | inch | 13.74 | 13.74 | |
| Spindle | Max. Bar Work Capacity | inch | 2.6 | 2.6 |
| Spindle Speed | rpm | 4500 | 4500 | |
| Chuck Size | inch | 8" | 8" | |
| Sub. Spindle | Max. Bar Work Capacity | inch | - | 2.6 |
| Spindle Speed | rpm | - | 6000 | |
| Chuck Size | inch | - | 6" | |
| Turret | Turret Type | T12 | T12 | |
| Live Tool Turret(Y/N) | Y | Y | ||
| Axes | Y Axis(Y/N) | N | N | |
| Machine Dimension |
Height | inch | 76.89 | 76.89 |
| Width | inch | 96.18 | 96.18 | |
| Depth | inch | 66.54 | 66.54 | |
| Weight | lb | 12875 | 12897 | |
