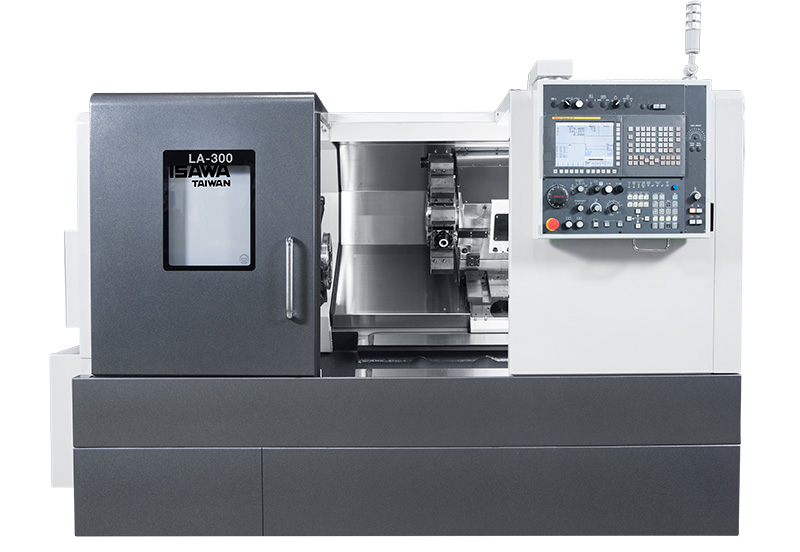

LA-300
LA-300 series is a economy turning center, there are various types of spindle, turret and tailstock in whole series, high-precision optional peripherals are also availabe.

- Specification
❚ Product features
Spindel

The spindle is made in house to ensure highest quality and reliability. There are two types: GearBox headstock and P motor headstock. These alternatives allow choices for precision, torque or cost effectiveness.
Motors, through-hole size, spindle speed ratios, nose etc can be amended when possible following a customised needs assessment.
Motors, through-hole size, spindle speed ratios, nose etc can be amended when possible following a customised needs assessment.
Turret

The T12 Milling Turret is a tested in house design that enables combined machining such as milling, drilling and tapping in addition to conventional turning. This allows complex and highly accurate machining in a single cycle for mass production of parts.
We can provide a customised needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
We can provide a customised needs assessment for special needs regarding numbers of tools, tool holders, milling cutters etc.
Tailstock

High rigit tailstock body with hydraulic driven quill, various driven types can be selected according to the requirement of user. High thrust or quill type can be customized according to the requirement of customer.
01.Pin Carry Tailstock with Live Center (Standard)
02.Manual Tailstock with live Center (Option)
03.Pin Carry Tailstock with Built-In Center (Option)
01.Pin Carry Tailstock with Live Center (Standard)
02.Manual Tailstock with live Center (Option)
03.Pin Carry Tailstock with Built-In Center (Option)
Item | Unit | LA-300 | |
---|---|---|---|
Capacity | Max. Swing | mm | 580 |
Max. Turning Diameter | mm | 450 | |
Max. Turning Length | mm | 1086 | |
Spindle | Max. Bar Work Capacity | mm | 90 |
Spindle Speed | rpm | 3000 | |
Chuck Size | inch | 12(15) | |
Turret | Turret Type | T10(T12) | |
Live Tool Turret(Y/N) | N | ||
Axes | Y Axis(Y/N) | N | |
Machine Dimension |
Height | mm | 1960 |
Width | mm | 3682 | |
Depth | mm | 1803 | |
Weight | kg | 7550 |
Item | Unit | LA-300 | |
---|---|---|---|
Capacity | Max. Swing | inch | 22.8 |
Max. Turning Diameter | inch | 17.72 | |
Max. Turning Length | inch | 42.76 | |
Spindle | Max. Bar Work Capacity | inch | 3.54 |
Spindle Speed | rpm | 3000 | |
Chuck Size | inch | 12(15) | |
Turret | Turret Type | T10(T12) | |
Live Tool Turret(Y/N) | N | ||
Axes | Y Axis(Y/N) | N | |
Machine Dimension |
Height | inch | 77.17 |
Width | inch | 144.96 | |
Depth | inch | 70.98 | |
Weight | lb | 16645 |
