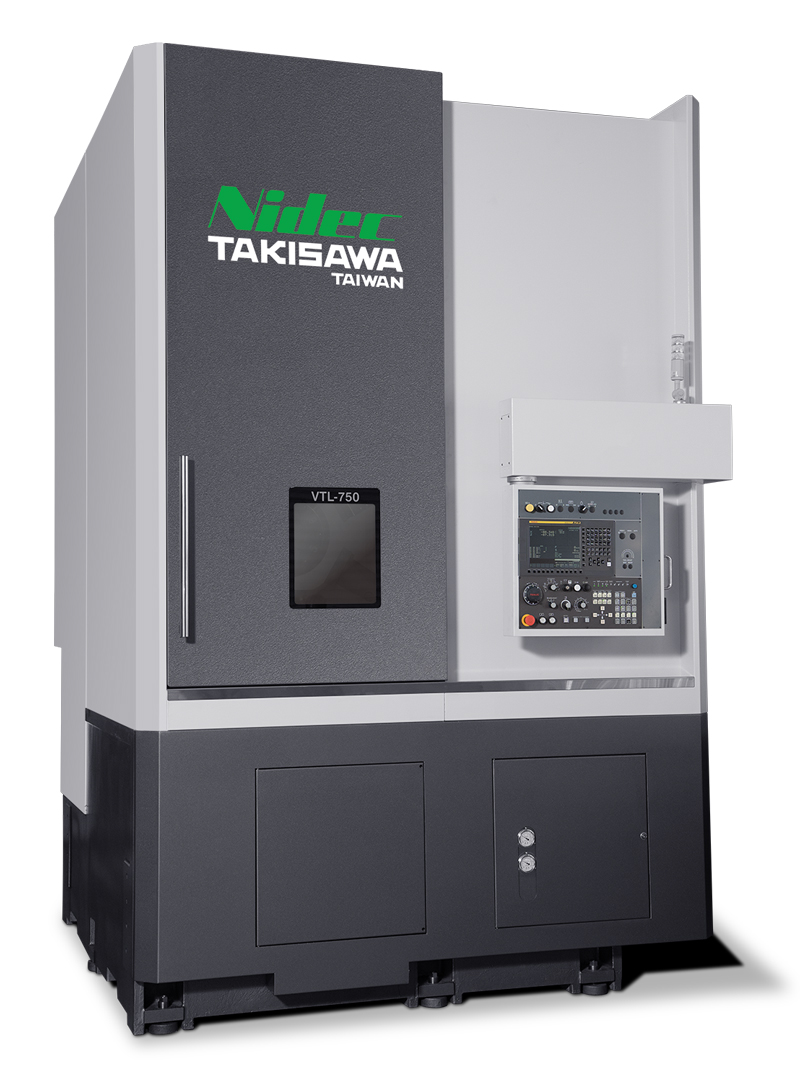

VTL-750A
- Excellent heavy duty cutting ability.
- Smooth chip flow designed bed.
- Productivity can be boosted with minimum investment by linking right and left units.

  •  Specification

❚ Product features

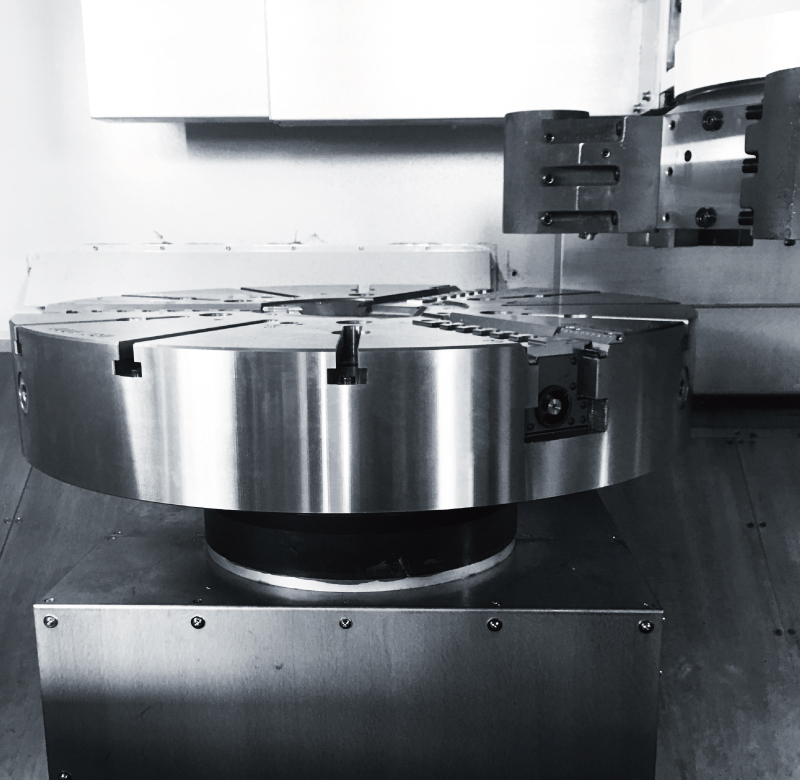

Spindel

- The spindle has a symmetrical structure to minimize thermal deformation..
- The machine with a powerful spindle motor to provide more powerful cutting ability.

Turret

- Inside the turret, the large diameter of curvic coupling provides high rigidity and high accurcy.
Machine Specifications(Metric Unit)
Item Unit VTL-750A
Capacity Max. Swing mm 1050
Max. Turning Diameter mm 780
Max. Turning Length mm 765
Spindle Spindle Speed rpm 1500
Chuck Size inch 24"
Turret Turret Type   T6
Live Tool Turret(Y/N)   N
Axes Y Axis(Y/N)   N
Machine
Dimension		 Height mm 3620
Width mm 2350
Depth mm 3970
Weight kg 16000
Machine Specifications(Imperial Unit)
Item Unit VTL-750A
Capacity Max. Swing inch 41.33
Max. Turning Diameter inch 30.7
Max. Turning Length inch 30.12
Spindle Spindle Speed rpm 1500
Chuck Size inch 24"
Turret Turret Type   T6
Live Tool Turret(Y/N)   N
Axes Y Axis(Y/N)   N
Machine
Dimension		 Height inch 130.3
Width inch 80.12
Depth inch 142.13
Weight lb 19850
