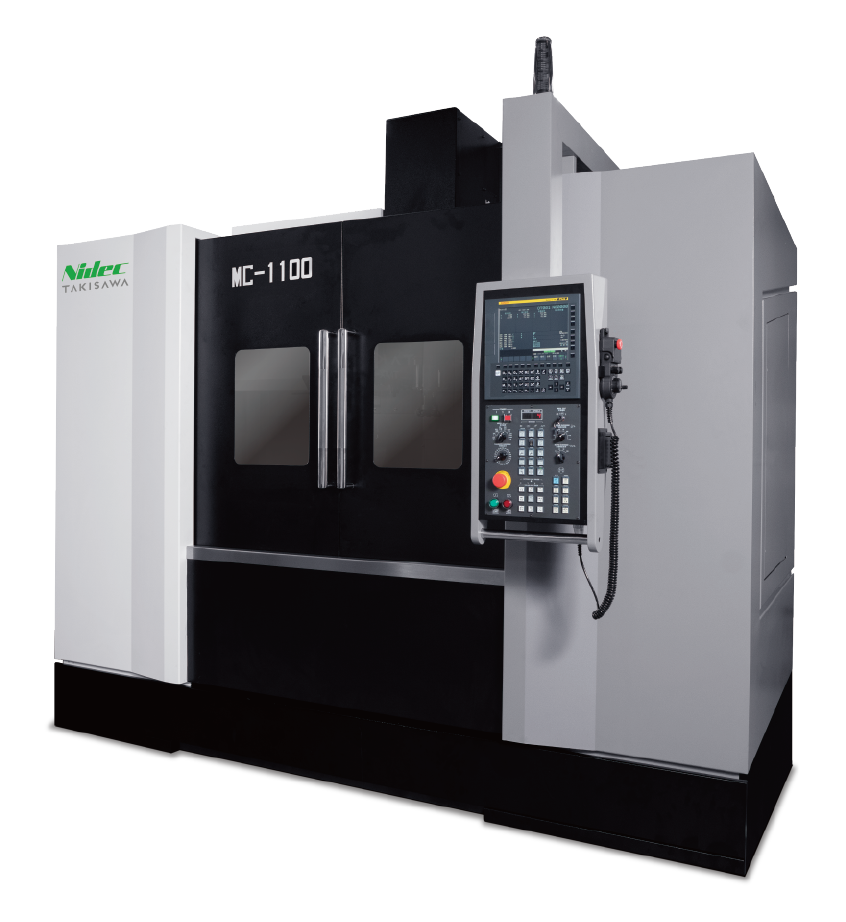

MC-1100
This economical vertical machining center has a strong wide-span structure with three-point base support. It uses roller-type linear guideways for high accuracy and rigidity, making it suitable for machining both general parts and tough materials like titanium alloys. Fast movement on all three axes improves machining efficiency, and the high-power direct-drive spindle supports heavy cutting. The optimized layout makes operation and maintenance easier than traditional machines. With a compact footprint and large machining area, it meets various needs and offers excellent value in same class.
- Specification
ATC Full Coverage SD 24T OP 30T
APB PLUS + Inverter Control- Automatic Brake Control
- Automatic Positioning Compensation Control
- S-Curve High-Speed Tool Change Function
- Automatic Positioning Compensation Control
- S-Curve High-Speed Tool Change Function

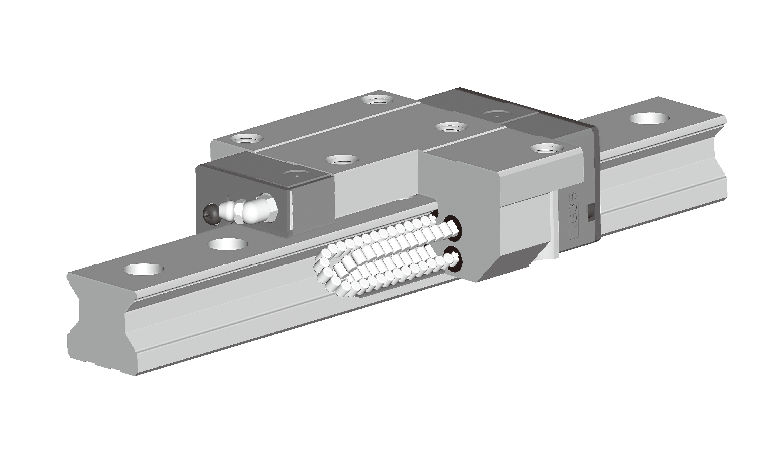

X、Y、Z Axes Linear Guide
- 35/45/45 Type High-Rigidity Roller Linear Guide
- Designed for ultra-high rigidity and ultra-heavy load capacity.
- The overall linear guide achieves four-directional equal height rigidity, significantly improving machining precision and meeting high-precision requirements.
- Designed for ultra-high rigidity and ultra-heavy load capacity.
- The overall linear guide achieves four-directional equal height rigidity, significantly improving machining precision and meeting high-precision requirements.

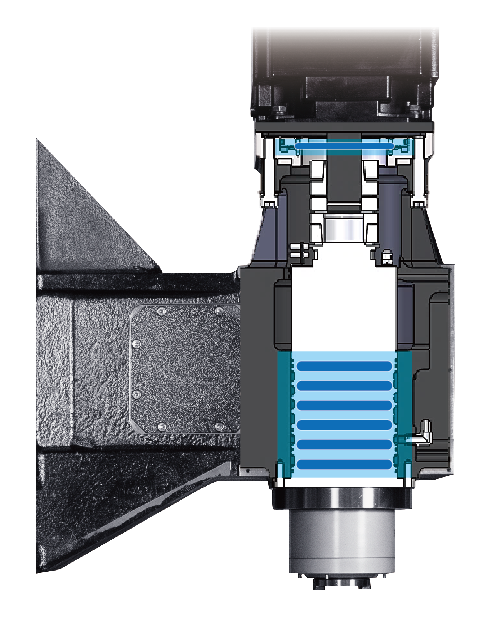

Spindle Thermal Generation Suppression
Provides a cooling system to effectively block heat transfer, maintaining high precision and preventing thermal deformation.
| Item | Unit | MC-1100 | |
|---|---|---|---|

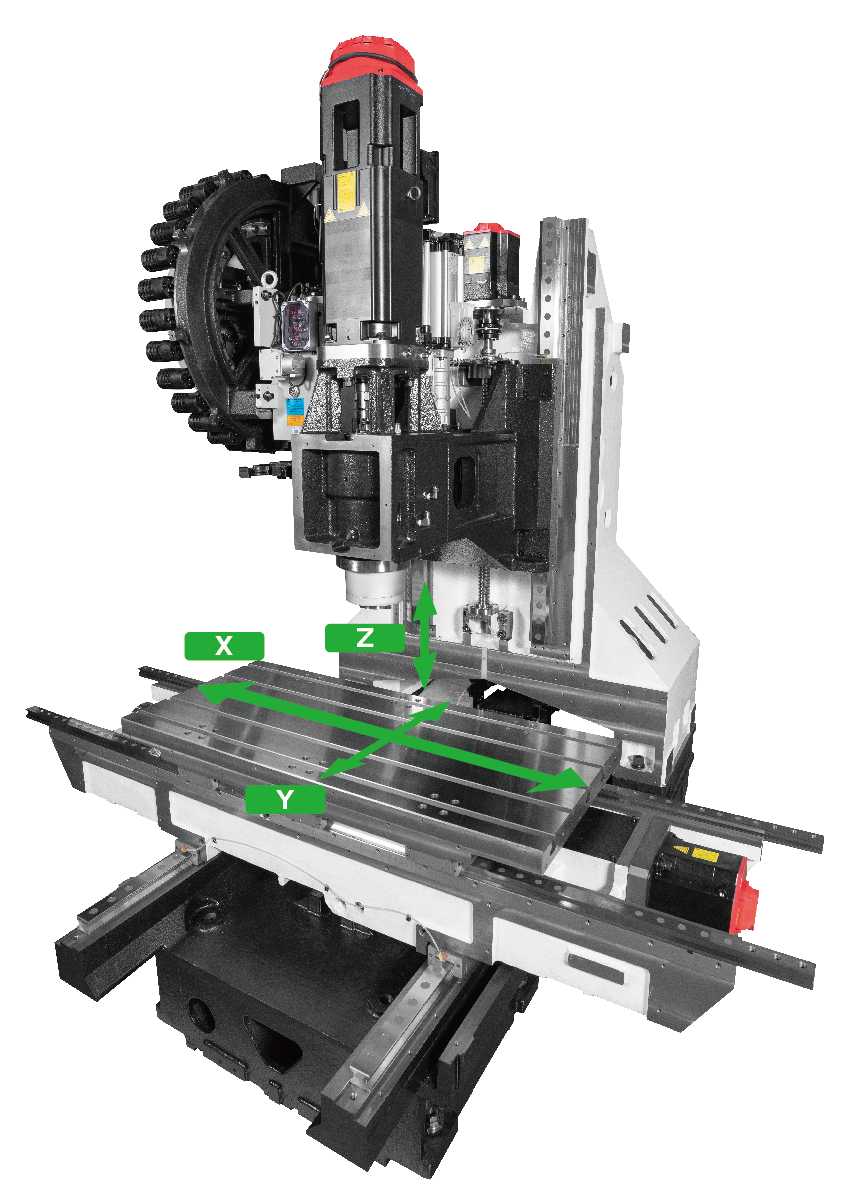

| Travel | X Axis Travel | mm | 1100 |
| Y Axis Travel | mm | 550 | |
| Z Axis Travel | mm | 520 | |
| Spindle Nose to Table Surface | mm | 150~670 | |
| Spindle Center to Column Guideway | mm | 550 | |
| Table | Table Size (X × Y) | mm | 1200x550 |
| Max. Table Load | kg | 850 | |
| T-Slot | mm | T18*110*5 | |
| Table Height | mm | 910 | |
| Spindle | Spindle Speed | rpm | 10000 (OP:12000/15000) |
| Spindle Taper | BBT 40 (OP：HSK-A63) | ||
| Bearing Inner Diameter | mm | Ø70 | |
| Spindle Motor (15% ED/Cont.) / (25% ED/Cont.) | 18.5/11 (OP:20/15) | ||
| Feed Rate | Rapid Feed | m/min | XY: 48 / Z:36 |
| Cutting Feed | m/min | 20 | |
| Servo Motor X/Y/Z | 4.3/4.3/4.3 | ||

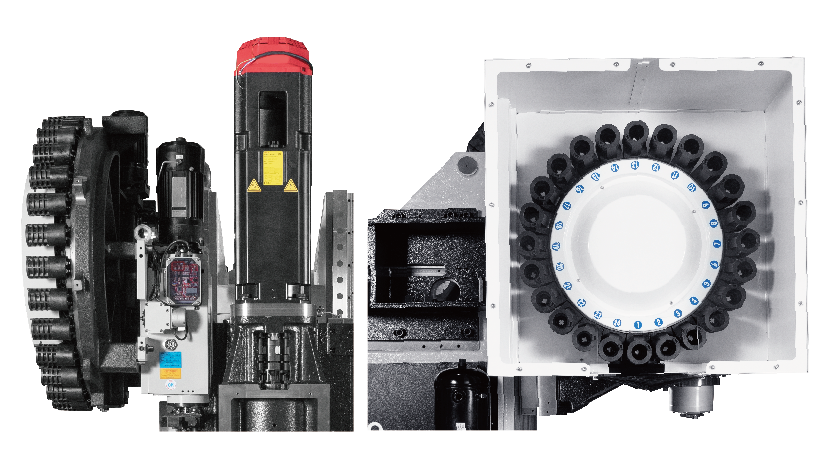

| ATC | Tool Capacity | 24 (OP 30) | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Diameter (Without Adjacent Tool) | mm | Ø80 / Ø150 | |
| Max. Tool Weight | kg | 8 | |
| Machine Dimensions | Packing Dimensions (L × W) | mm | 2300*2970 |
| Machine Weight | kg | 6000 | |
| Item | Unit | MC-1100 | |
|---|---|---|---|
| Travel | X Axis Travel | in | 43.31 |
| Y Axis Travel | in | 21.65 | |
| Z Axis Travel | in | 20.47 | |
| Spindle Nose to Table Surface | in | 5.91 ~ 26.38 | |
| Spindle Center to Column Guideway | in | 21.65 | |
| Table | Table Size (X × Y) | in | 47.24 × 21.65 |
| Max. Table Load | lbs | 1874 | |
| T-Slot | in | 0.71 × 4.33 × 5 | |
| Table Height | in | 35.83 | |
| Spindle | Spindle Speed | rpm | 10000 (OP:12000/15000) |
| Spindle Taper | BBT 40 (OP: HSK-A63) | ||
| Bearing Inner Diameter | in | Ø2.76 | |
| Spindle Motor (15% ED/Cont.) / (25% ED/Cont.) | HP | 24.8/14.8 (OP:26.8/20.1) | |
| Feed Rate | Rapid Feed | ipm | XY: 1890 / Z: 1417 |
| Cutting Feed | ipm | 787 | |
| Servo Motor X/Y/Z | HP | 5.8 / 5.8 / 5.8 | |
| ATC | Tool Capacity | 24 (OP 30) | |
| Max. Tool Length | in | 11.81 | |
| Max. Tool Diameter (Without Adjacent Tool) | in | Ø3.15 / Ø5.91 | |
| Max. Tool Weight | lbs | 17.64 | |
| Machine Dimensions | Packing Dimensions (L × W) | in | 90.55 × 116.93 |
| Machine Weight | lbs | 13228 | |
